Solar Pool Pumps - SP900

SP9002022-08-18T14:54:51+02:00

FEATURES

  • 100% Off Grid

  • No Batteries Required

  • DC Brushless Motor

  • MPPT Controller

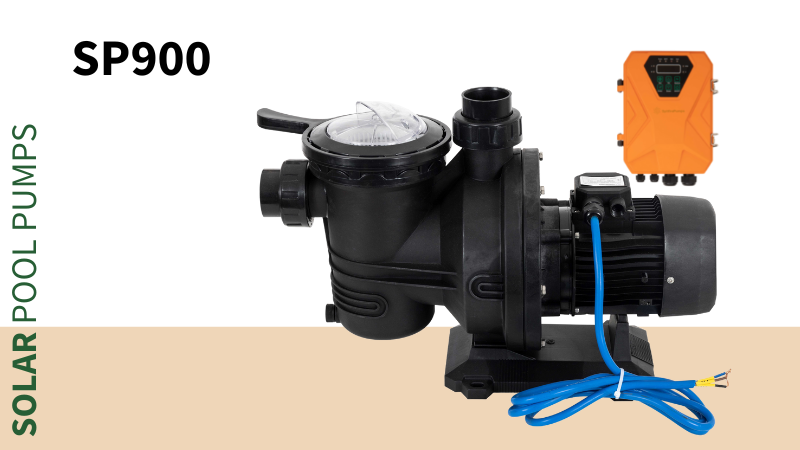

Model SP900
Voltage 72 V
Power 900 Watts
Max Flow Rate 20 m3/h
Max Head 19 m
Warranty 12 Months
Get a Quote

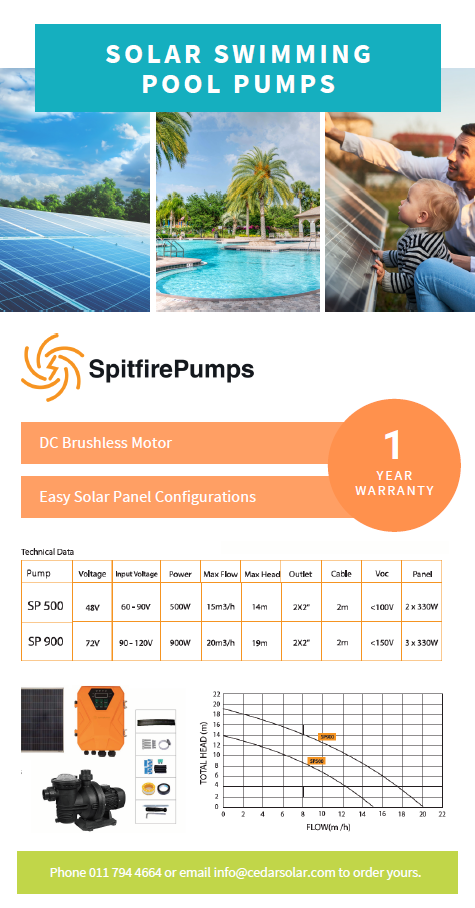

Spec Sheet

GENERAL DATA

Outlet 2 x 50 mm
Cable 2m
Type of Pump Centrifugal
Optimal Input Voltage 90 – 120 V
Input Limit/Max 150 Voc
Pool Size/Max 100 000 liters

PACKAGE DIMENTIONS

Length 660 mm
Width 360 mm
Height 360 mm
Weight 16 kg

SOLAR PANEL REQUIREMENTS

PANELS VOLTAGE (VMP) QTY
340 Watts 38 V 3

IMPORTANT INFORMATION

  • Always follow the recommended solar panel configurations

  • Exceeding the voltage limit of the controller will be damage the controller. This will not be a warranty claim.

FREQUENTLY ASKED QUESTIONS

Do you offer a warranty on your pumps?2024-01-19T11:18:02+02:00

Our warranty is a limited liability warranty against manufacturer defects. If there are any issues with our solar pumps during the warranty period, please contact us. We have a fully functional pump workshop and keep spare parts in stock. We also offer remote support, if the issue is not resolved you can submit a claim request. If the claim is approved, we will replace the defective product or part.

  • Spitfire Range – 12 months
  • Premium Range – 24 months
  • Multiflow Range – 12 months

From date of purchase from Cedar Solar SA (Invoice Date)

What else do I need besides the pump, controller and solar panels?2022-08-16T18:05:40+02:00

You will need the following to complete the installation:

  • Three Core Submersible Cable. 4mm up to 60m and 6mm up to 120m.
  • Cable Splice Kit to connect the pump power cable to the submersible cable
  • A baseplate to secure the pump to the top of the borehole and keep everything in position
  • Polyprop Rope to secure the pump to the baseplate
  • Solar cable (optional) if the panels are installed further than 3m from the borehole
  • Pipe – Water pipe 32mm HDPE is the most common
  • Pipe Fittings – to connect the pump to the pipe, baseplate and pipeline
  • Groundmount to ensure you panel is installed at the optimal angle to the sun
Is installation included? Do you do installations?2022-08-17T07:56:18+02:00

No installation is not included.

We can quote on installation in Gauteng.

Outside of Gauteng (and parts of Southern Africa) we work with a network of 150 independent solar pump installers. We will put you in touch with your nearest installer that can quote you on the products and installation. Their pricing in-line with ours and you will have local support which is important.
