Premium Pumps - Ceva 80

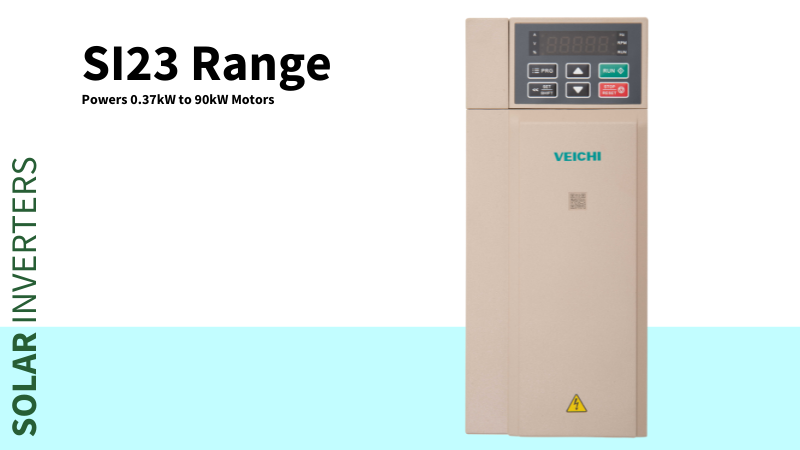

Veichi SI232022-08-18T14:26:33+02:00

FEATURES

  • Convert you current AC pump

  • Adaptable to various AC Pumps

  • In-house software for accurate sizing

  • Monitoring and control via APP

Range SI23
Rated Voltage 380 V
Max DC Input Voltage 780
Output Frequency 0 – 320 Hz
Phases 3
Get a Quote
Manual
Brochure

Technical Specification

SI23 Inverter kW Pump Rated Power Pump Rated Voltage Max solar input kW Max DC input V Recommended Voc Rated current output A Output Frequency Hz
4 4 380 5.6 780 620 – 750 10 0 – 320
5.5 5.5 380 8  780 620 – 750 13 0 – 320
7.5 7.5 380 10  780 620 – 750 17 0 – 320
11 11 380 14.3  780 620 – 750 25 0 – 320
15 15 380 19.5  780 620 – 750 32 0 – 320
22 22 380 28.6  780 620 – 750 45 0 – 320
30 30 380 39  780 620 – 750 60 0 – 320
37 37 380 48.1  780 620 – 750 75 0 – 320
45 45 380 58.5  780 620 – 750 90 0 – 320
90 90 380 97.5  780 620 – 750 150 0 – 320

IMPORTANT INFORMATION

  • Viechi Systems need to be sized with our in-house software. Contact our sales team to help you plan your project.

  • We size the drive one size larger than the motor to compensate for altitude and longer cable runs. Speak to our Veichi expert for the correct sizing advice.

FREQUENTLY ASKED QUESTIONS

Do you offer a warranty on your pumps?2024-01-19T11:18:02+02:00

Our warranty is a limited liability warranty against manufacturer defects. If there are any issues with our solar pumps during the warranty period, please contact us. We have a fully functional pump workshop and keep spare parts in stock. We also offer remote support, if the issue is not resolved you can submit a claim request. If the claim is approved, we will replace the defective product or part.

  • Spitfire Range – 12 months
  • Premium Range – 24 months
  • Multiflow Range – 12 months

From date of purchase from Cedar Solar SA (Invoice Date)

What else do I need besides the pump, controller and solar panels?2022-08-16T18:05:40+02:00

You will need the following to complete the installation:

  • Three Core Submersible Cable. 4mm up to 60m and 6mm up to 120m.
  • Cable Splice Kit to connect the pump power cable to the submersible cable
  • A baseplate to secure the pump to the top of the borehole and keep everything in position
  • Polyprop Rope to secure the pump to the baseplate
  • Solar cable (optional) if the panels are installed further than 3m from the borehole
  • Pipe – Water pipe 32mm HDPE is the most common
  • Pipe Fittings – to connect the pump to the pipe, baseplate and pipeline
  • Groundmount to ensure you panel is installed at the optimal angle to the sun
Is installation included? Do you do installations?2022-08-17T07:56:18+02:00

No installation is not included.

We can quote on installation in Gauteng.

Outside of Gauteng (and parts of Southern Africa) we work with a network of 150 independent solar pump installers. We will put you in touch with your nearest installer that can quote you on the products and installation. Their pricing in-line with ours and you will have local support which is important.
