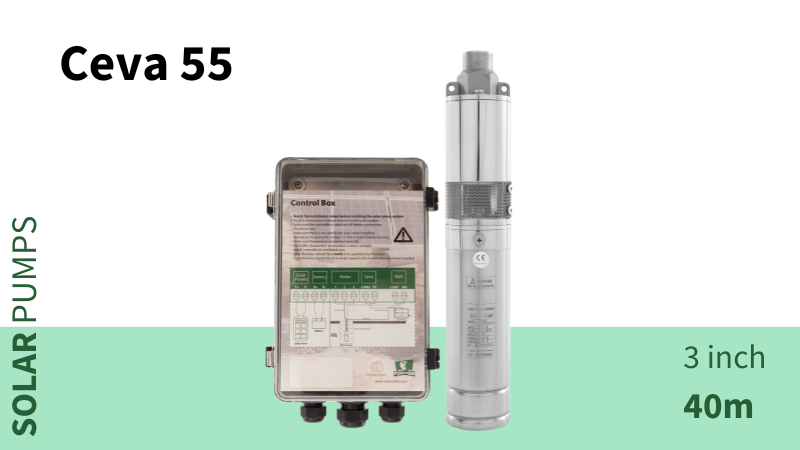

Premium Pumps - Ceva 55

Ceva 552022-08-17T10:59:21+02:00


  • 100% Off Grid

  • No Batteries Required

  • Dry Run Protection

  • MPPT Controller

Model Ceva 55
Voltage 24 V
Power 120 Watts
Max Flow Rate 1.1 m3/h
Max Head 40 m
Warranty 24 Months
Get a Quote
Spec Sheet


Outlet 20 mm
Pump Diameter 75mm
Type of Pump Helical Rotor
Submersible Depth 30 m
Optimal Input Voltage 42 Voc
Input Limit/Max 50 Voc


Length 660 mm
Width 360 mm
Height 200 mm
Weight 13 kg


100 Watts 18 V 2
340 Watts 38 V 1


  • Always follow the recommended solar panel configurations

  • Exceeding the voltage limit of the controller will be damage the controller. This will not be a warranty claim.

  • Do not hang Ceva pumps deeper than 30m below water level. The pump has a oil filled motor and is designed for this depth.

  • Calculations based on 6 hours of peak sunshine. For a very accurate sizing in your area use our Solar Pump Sizing Tool which calculates sun hours in your area.


Do you offer a warranty?2022-08-17T07:53:05+02:00

Our warranty is a limited liability warranty against manufacturer defects. If there are any issues with our solar pumps during the warranty period, please contact us. We have a fully functional pump workshop and keep spare parts in stock. We also offer remote support, if the issue is not resolved you can submit a claim request. If the claim is approved we will replace the defective product or part.

  • Spitfire Range – 12 months
  • Premium Range – 24 months
  • Multiflow Range – 18 months

From date of purchase from Cedar Solar SA (Invoice Date)

What else do I need besides the pump, controller and solar panels?2022-08-16T18:05:40+02:00

You will need the following to complete the installation:

  • Three Core Submersible Cable. 4mm up to 60m and 6mm up to 120m.
  • Cable Splice Kit to connect the pump power cable to the submersible cable
  • A baseplate to secure the pump to the top of the borehole and keep everything in position
  • Polyprop Rope to secure the pump to the baseplate
  • Solar cable (optional) if the panels are installed further than 3m from the borehole
  • Pipe – Water pipe 32mm HDPE is the most common
  • Pipe Fittings – to connect the pump to the pipe, baseplate and pipeline
  • Groundmount to ensure you panel is installed at the optimal angle to the sun
Is installation included? Do you do installations?2022-08-17T07:56:18+02:00

No installation is not included.

We can quote on installation in Gauteng.

Outside of Gauteng (and parts of Southern Africa) we work with a network of 150 independent solar pump installers. We will put you in touch with your nearest installer that can quote you on the products and installation. Their pricing in-line with ours and you will have local support which is important.
